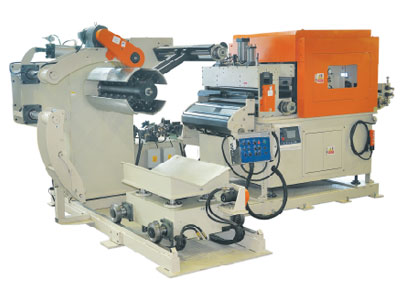

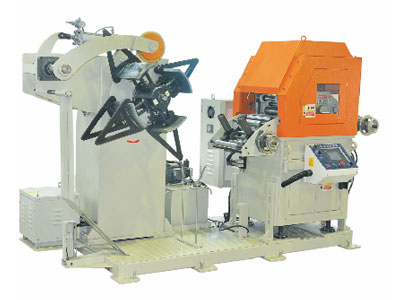

3 in 1 servo feeder cum straightener cum Decoiler
Standard | Accessory
- Electric Eye Loop Control System.
- Straightener Opener Device.
- Feeding line easily adjusts by advance worm gear screw jacks device.
- Feed and straightener rolls with a hard chrome finished.
- Hold down arm device.
Specifications
| Mode | Item |
TNCF1-300 |
TNCF1-400 |
TNCF1-500 |
TNCF1-600 |
TNCF2-300 |
TNCF2-400 |
TNCF2-500 |
TNCF2-600 |
| Width of Material |
55~300 |
55~400 |
55~500 |
55~600 |
75~300 |
75~400 |
75~500 |
75~600 |
| Feed Length (max.) mm |
9999.99 |
9999.99 |
9999.99 |
9999.99 |
9999.99 |
9999.99 |
9999.99 |
9999.99 |
| Thickness of Material (mm) |
0.15-1.5 |
0.3-2.3 |
| Max coll Weight (kg) |
1000 |
2000 |
300 |
2000 |
3000 |
| Coil I.D (mm) |
508 |
508 |
| Max. Coil O.D (mm) |
1200 |
1200 |
| Max. Speed (m/min) |
16 |
16 |
| Feed pitch Accuracy (mm) |
0.15 |
0.15 |
| Feed Roll |
Upper1/Lower1 |
Upper1/Lower1 |
| Work Roll |
Upper8/Lower9 |
Upper10/Lower9 |
Upper6/Lower5 |
| Power Supply |
220VAC60HZ |
220VAC60HZ |
| Air Power Supply |
5kg/cm |
5kg/cm |
| Uncoiler Expansion |
Material Operated |
Hydraulic |
Hydraulic |
| Servo Motor (kw) |
AC 0.75 |
AC 1.5 |
AC 2.2 |
AC 3.5 |
| Uncoiler Motor (kw) |
1.5 |
2.2 |
1.5 |
2.2 |
Straightening | Performance
| Model/Width/Thickness |
0.15 |
0.35 |
0.6 |
1.0 |
1.2 |
1.5 |
| TNCF1-300 |
300 |
200 |
150 |
100 |
| TNCF1-400 |
400 |
| TNCF1-500 |
500 |
400 |
| TNCF1-600 |
600 |
500 |
400 |
| Model/Width |
Thickness |
|
0.3 |
0.8 |
1.2 |
1.6 |
2.0 |
1.5 |
| TNCF1-300 |
300 |
100 |
| TNCF1-400 |
400 | 280 |
|
| TNCF1-500 |
500 | 250 |
400 |
| TNCF1-600 |
600 |
|
|
240 |
400 |
Standard | Accessory
- Electric Eye Loop Control System.
- A cluster gear set maximzes transmission of horse power.
- Feed and straightener rolls with a hard chrome plated.
- Hold down arm device.
- Feeding line can be easily adjusted by advance worm gear screw jacks device.
- Reference indicator adjuster.
- Outgoing catenary to assist and support the material.
- Coil side guide.
- Transformer.
- PLC Control Feeding program from Mitsubishi.
Specifications
| Mode | Item |
TNCF3-300 |
TNCF3-400 |
TNCF3-500 |
TNCF3-600 |
TNCF4-300 |
TNCF4-400 |
TNCF4-500 |
TNCF4-600 |
TNCF4-700 |
TNCF4-800 |
| Width of Material |
75~300 |
75~400 |
75~500 |
75~600 |
75~300 |
75~400 |
75~500 |
75~600 |
75~700 |
75~800 |
| Feed Length (max.) mm |
9999.99 |
9999.99 |
9999.99 |
9999.99 |
9999.99 |
9999.99 |
9999.99 |
9999.99 |
9999.99 |
9999.99 |
| Thickness of Material (mm) |
0.4-3.2 |
0.5-4.5 |
| Max coll Weight (kg) |
2000 |
|
3000 |
2000 |
5000 |
| Coil I.D (mm) |
508 |
508 |
| Max. Coil O.D (mm) |
1200 |
1200 |
| Max. Speed (m/min) |
16 |
16 |
| Feed pitch Accuracy (mm) |
0.15 |
0.15 |
| Feed Roll |
Upper1/Lower1 |
Upper1/Lower1 |
| Work Roll |
Upper5/Lower4 |
Upper4/Lower1 |
| Power Supply |
220VAC60HZ |
220VAC60HZ |
| Air Power Supply |
5kg/cm |
5kg/cm |
| Uncoiler Expansion |
Hydraulic |
Hydraulic |
| Servo Motor (kw) |
AC 3.5 |
AC 2.9 |
AC 4.4 |
AC 7.5 |
| Uncoiler Motor (kw) |
1.5 |
2.2 |
2.2 |
3.7 |
