Straighteners / Levellers

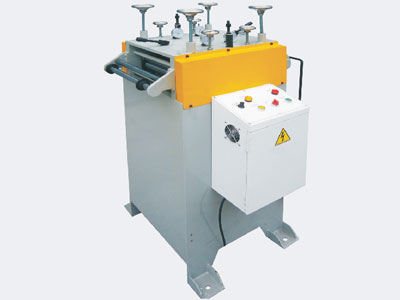

BCL TYPE (Roller diameter 32mm)

For thickness upto 1.6mm., Roller dia 32mm., Single point adjustment, with or without VFD Panels. All rolls are hardened, ground and chrome plated. And all standard electrical motors and gear box used.

1. Suitable for straightening of various thinner metal sheets, good effect.

2. A variable speed control is used normal and high speed operation, control by modern frequency converters, keep pace with press, stable feeding.

3. All rolls are made of solid steel, have all been quenched, hard- chrome plated and grinded with HRC60 hardness.

4. Selection range is extensive according to the thickness of the materials and work pieces.

Specifications

Model	BCL-200	BCL-300	BCL-400	BCL-500
(Mm) Material width	200	300	400	500
(Mm) Material thickness	0.2-1.5	0.2-1.5	0.2-1.5	0.2-1.5
(m/min) speed	15	15	15	15
Straightener diameter x quantity	32 x All Driven 32 x up 7 / down 8
Pitch roller diameter x quantity	32 x 2 / 32 x 2 32 x 2 up / 32 x 2 down

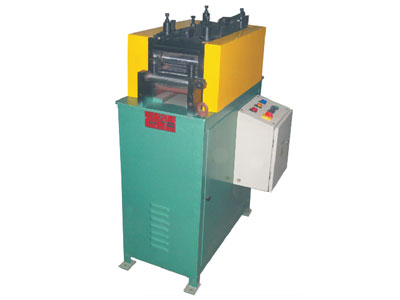

CLS TYPE (Roller diameter 60mm)

For thickness upto 3.0mm., Roller dia 60mm., Single point adjustment, with or without VFD Panels. All rolls are hardened, ground and chrome plated. And all standard electrical motors and gear box used.

Leveler

Type mm	CLS -150	CLS -200	CLS -300	CLS -400	CLS -500	CLS -600	CLS -700	CLS -800
Max. Material Width mm	150	200	300	400	500	600	700	800
Material Thickness mm	0.5 ~ 3	0.5 ~ 3	0.5 ~ 3	0.5 ~ 3	0.5 ~ 3	0.5 ~ 3	0.5 ~ 3	0.5 ~ 3
Reducer	1/30	1/30	1/30	1/30	1/30	1/30	1/30	1/30
Pinching Roller	60x2 80x2	60x2 80x2	60x2 80x2	60x2 98x2	60x2 98x2	60x2 98x2	60x2 98x2	98x2 80x2
Work - Roller	60x7	60x7	60x7	60x7	60x7	60x7	60x7	60x7

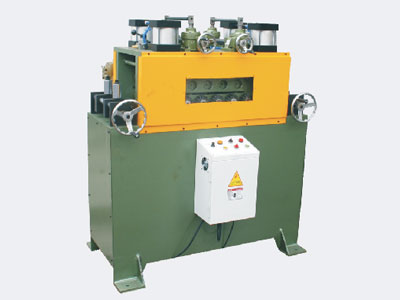

HS-A TYPE (Roller diameter 80mm)

For thickness upto 4.5mm., Roller dia 80mm., with or without VFD Panels. All rolls are hardened, ground and chrome plated. And all standard electrical motors and gear box used.

Suitable for straighten different metal sheets.
Efficient automatic material feeding equipment, a dramatic increase in productivity is achieved by lane up with Auto Reel (MT-type) MTDM-type)
Hard chrome plated Roller, low wear, long operating life.

Specifications

Type	HS-200A	HS-300A	HS-400A	HS-500A	HS-600A	HS-700A	HS-800A
Width Max	200	300	400	500	600	700	800
Material Thickness	1.0-4.5	1.0-4.5	1.0-4.5	1.0-4.5	1.0-4.5	1.0-4.5	1.0-4.5
Speed of Feed (M/min)	15	15	15	15	15	15	15
Motor (hp)	3	5	5	7.5	7.5	10	10

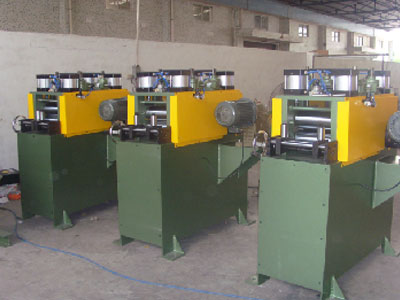

HS-B Type (Roller diameter 120mm)

For thickness upto 6.0mm., Roller dia 120mm., with or without VFD Panels. All rolls are hardened, ground and chrome plated. And all standard electrical motors and gear box used.

Suitable for straighten different metal sheets.
Equipped with magnetic contractor and electronic components, minimum breakdown
Efficient automatic material feeding equipment, a dramatic increase in productivity is achieved by lane up with Auto
Reel (MT-type) MTDM- type)
Hard chrome plated Roller, low wear, long operating life.

Specifications

Type	HS-200B	HS-300B	HS-400B	HS-500B	HS-600B	HS-700B	HS-800B	HS-1000B
Width Max	200	300	400	500	600	700	800	1000
Material Thickness	1.0-4.5	1.0-6.0	1.0-6.0	1.0-6.0	1.0-6.0	1.0-6.0	1.0-6.0	1.0-6.0
Speed of Feed (M/min)	15	15	15	15	15	15	15	15
Motor (hp)	3	5	5	7.5	7.5	10	10	15

S-Loop | Type Straightners

It is able to exactly match the Double End Coil Cradle, Easy operation, It can complete match with high speed press, Use with roll feeder machine effect will be better.
"S" type loop guiding system is equipped with optical signals. PC and frequency converter and can work synchronizing with the press.
The frequency converter adjusts speed. SPM up to 60m/min.

Specifications

Model	JM3S-200	JM3S-300	JM3S-400
Max. Width(mm)	120	200	300
Max. Thickness (mm)	0.35~1.0	0.35~1.0	0.35~1.0
Max. Material	60	60	60
Motor (hp)	1	1	2
Power	1	AC380V- (AC three-phase voltage)380V
